Pressure Vessels, Reactors and Column Towers

Pressure Vessels

It is a vessel designed to contain and control the pressure of gas or liquids safely. They store, transport, or process substances under high pressure or temperature conditions, ensuring safety and integrity in various industrial applications.

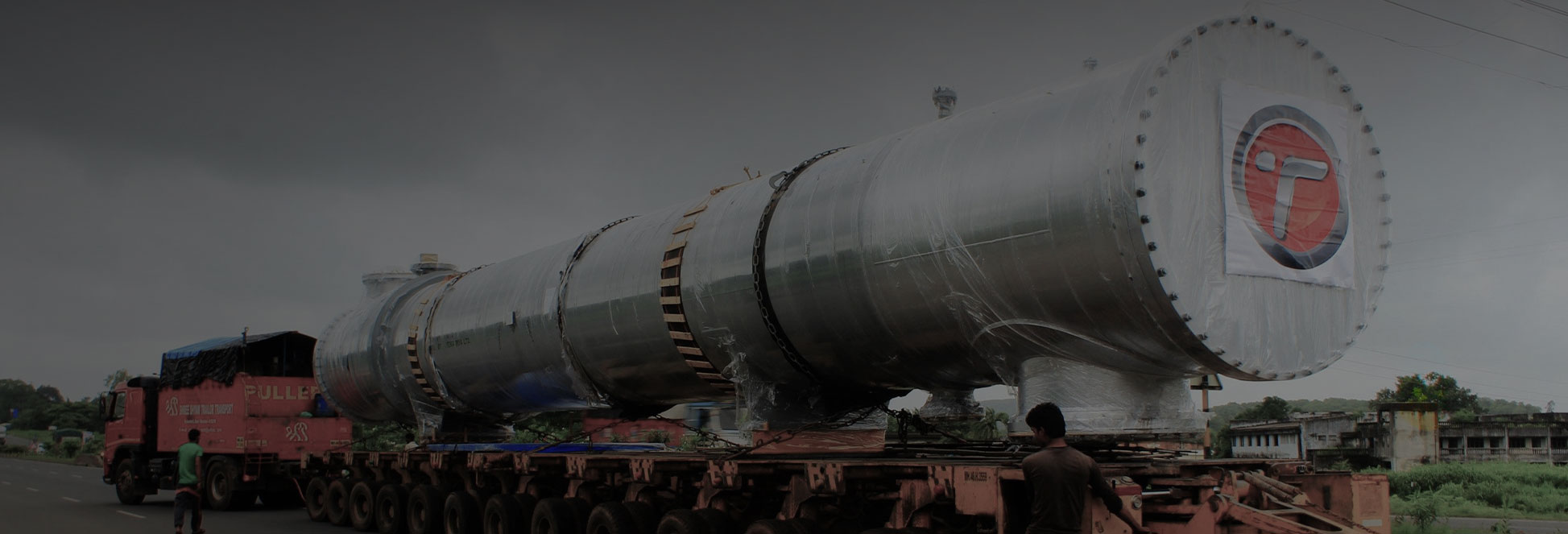

pressure-vessel

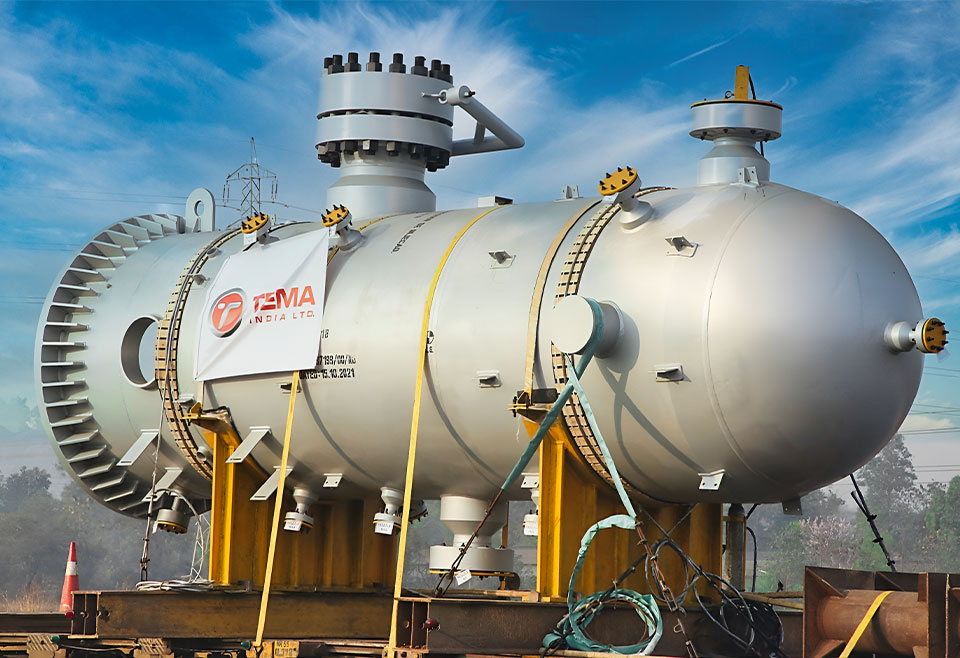

Suction Scrubber

Suction Scrubber

Metallurgy:

Stainless Steel and Carbon Steel

Design Pressure:

8.7 Kg/cm^2g

Design Temperature:

70 DegC

Highlights:

High-thickness (up to 270mm) pressure vessels with internals.

Country of Supply:

Brazil

Year of Supply:

2022

Metallurgy:

Stainless Steel and Carbon Steel

Design Pressure:

8.7 Kg/cm^2g

Design Temperature:

70 DegC

Highlights:

High-thickness (up to 270mm) pressure vessels with internals.

Country of Supply:

Brazil

Year of Supply:

2022

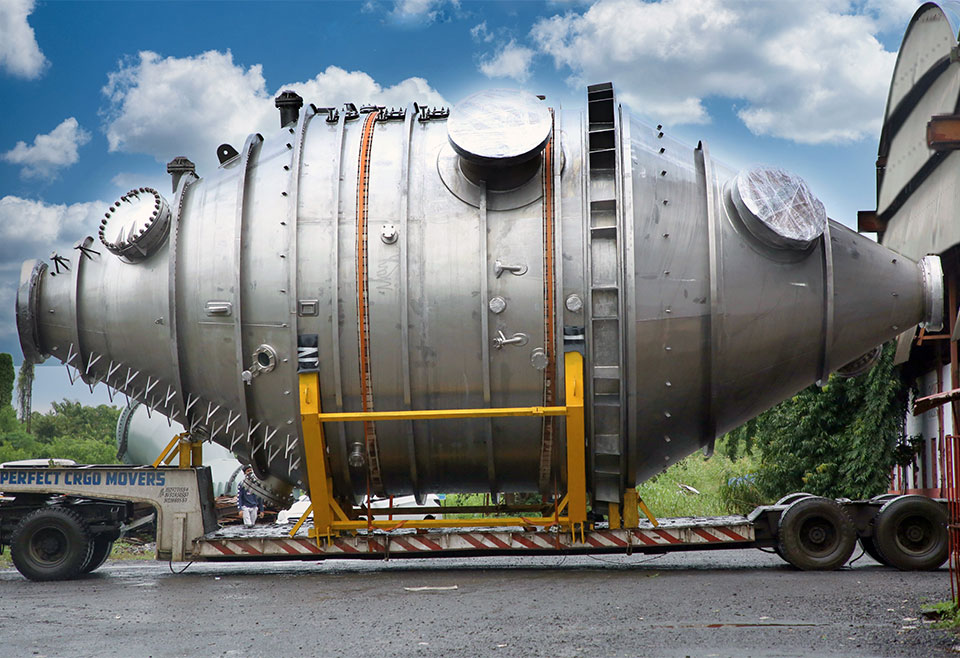

Evaporator

Evaporator

Metallurgy:

Titanium Grade 12

Design Pressure:

3.65 kg/cm^2g

Design Temperature:

180 DegC

Highlights:

Evaporators that have diameters up to 5500mm.

Country of Supply:

India

Year of Supply:

2021

Metallurgy:

Titanium Grade 12

Design Pressure:

3.65 kg/cm^2g

Design Temperature:

180 DegC

Highlights:

Evaporators that have diameters up to 5500mm.

Country of Supply:

India

Year of Supply:

2021

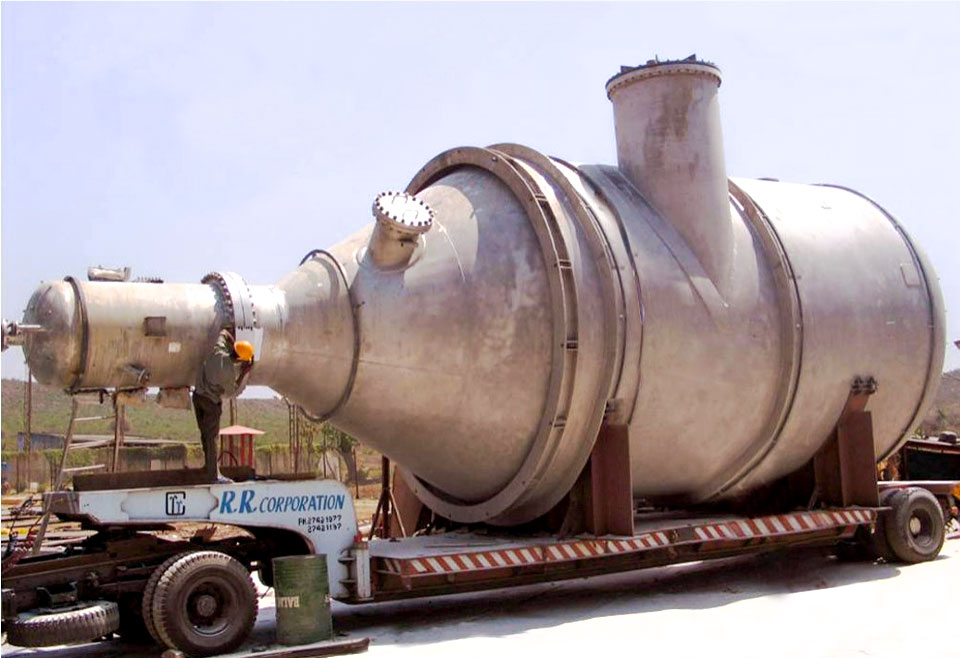

Vacuum Separator

Vacuum Separator

Metallurgy:

Stainless Steel

Design Pressure:

1.8 kg/cm^2g

Design Temperature:

165 DegC

Highlights:

Vacuum Separator Holder

Country of Supply:

Oman

Year of Supply:

2004

Metallurgy:

Stainless Steel

Design Pressure:

1.8 kg/cm^2g

Design Temperature:

165 DegC

Highlights:

Vacuum Separator Holder

Country of Supply:

Oman

Year of Supply:

2004

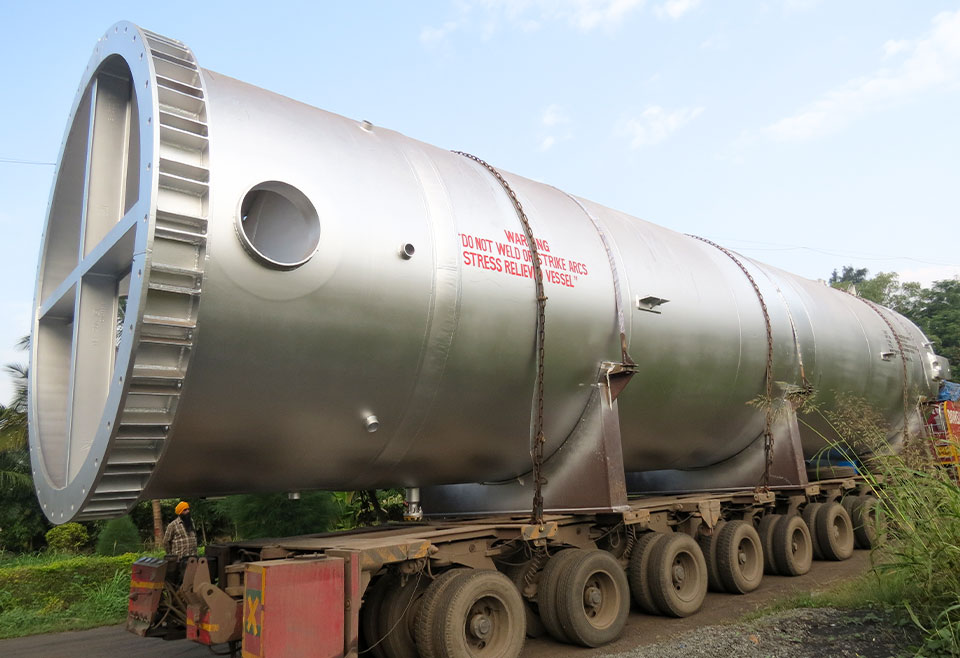

Nitrogen Buffer Vessel

Nitrogen Buffer Vessel

Metallurgy:

Carbon Steel

Design Pressure:

35/Full Vacuum bar

Design Temperature:

250/250 (INT./EXT.) DegC

Highlights:

High-pressure vessel with 14.4 m length.

Country of Supply:

India

Year of Supply:

2013

Metallurgy:

Carbon Steel

Design Pressure:

35/Full Vacuum Bar

Design Temperature:

250/250 (INT./EXT.) DegC

Highlights:

High-pressure vessel with 14.4 m length.

Country of Supply:

India

Year of Supply:

2013

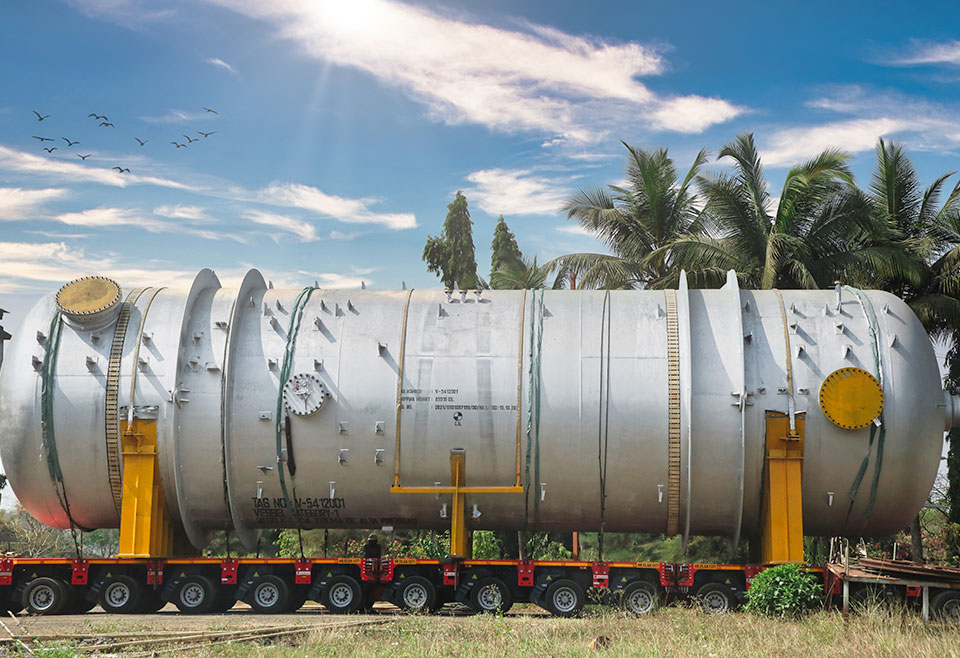

Flare K.O. Drum

Flare K.O. Drum

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

3.50 Kg/cm^2g

Design Temperature:

195 DegC

Highlights:

High-pressure K.O. drum with cladded shell and dished end.

Country of Supply:

Brazil

Year of Supply:

2022

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

3.50 Kg/cm^2g

Design Temperature:

195 DegC

Highlights:

High-pressure K.O. drum with cladded shell and dished end.

Country of Supply:

Brazil

Year of Supply:

2022

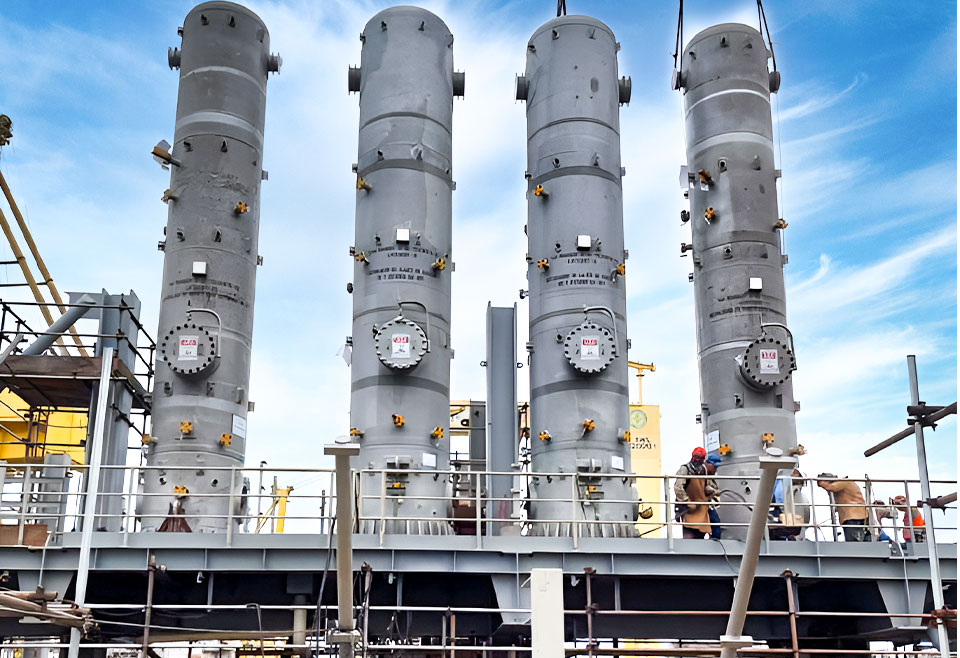

VRU 1st and 2nd Stages Suction Scrubbers

VRU 1st & 2nd Suction Scrubber

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

6.1-8.7 kg/cm^2g

Design Temperature:

70 DegC

Highlights:

Cladding of SS over CS. These drums were placed in series for the stages.

Country of Supply:

Brazil

Year of Supply:

2022

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

6.1-8.7 kg/cm^2g

Design Temperature:

70 DegC

Highlights:

Cladding of SS over CS. These drums were placed in series for the stages.

Country of Supply:

Brazil

Year of Supply:

2022

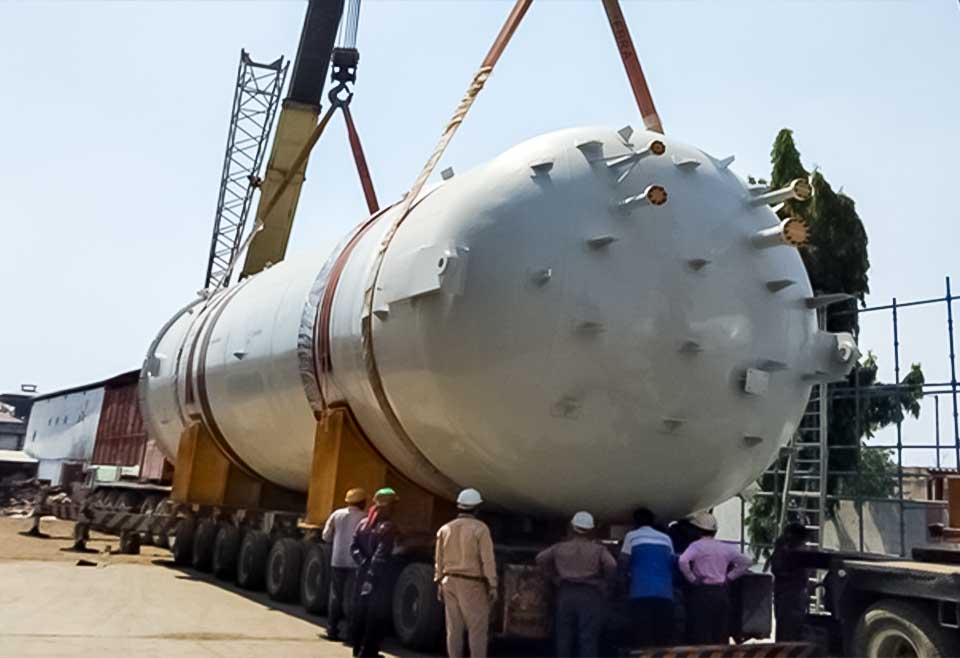

Thermal Desorption Closed Drain Drum

Thermal Desorption Closed Drain Drum

Metallurgy:

Carbon Steel

Design Pressure:

1.7 kg/cm^2g (Shell) and 4.5 kg/cm^2g (Coil)

Design Temperature:

87 DegC (Shell) and 165 DegC (Coil)

Highlights:

Tank with heating coils

Country of Supply:

UAE

Year of Supply:

2018

Metallurgy:

Carbon Steel

Design Pressure:

1.7 kg/cm^2g (Shell) and 4.5 kg/cm^2g (Coil)

Design Temperature:

87 DegC (Shell) and 165 DegC (Coil)

Highlights:

Tank with heating coils

Country of Supply:

UAE

Year of Supply:

2018

Reactors

The process industry facilitates chemical reactions, often in controlled and optimized conditions. They mix and react with raw materials to generate desired products or intermediates. These reactions can be exothermic or endothermic depending on the chemical process used.

reactor banner

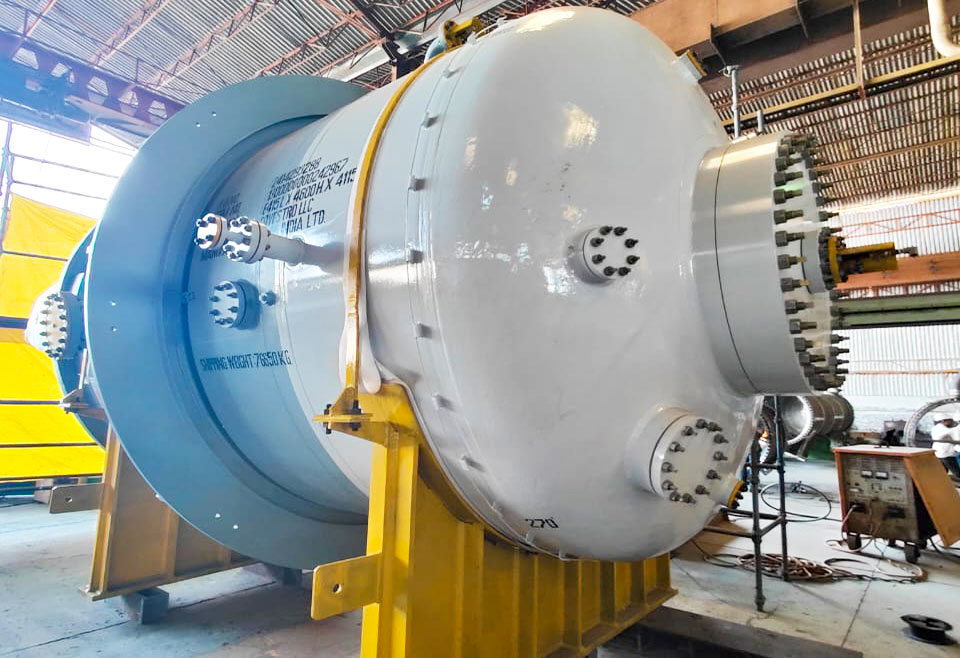

Tubular Reactor

Tubular Reactor

Metallurgy:

Low Alloy Steel and Carbon Steel

Design Pressure:

32.63 bar

Design Temperature:

232°C

Highlights:

Reactor with intricate internal parts

Country of Supply:

USA

Year of Supply:

2023

Metallurgy:

Low Alloy Steel and Carbon Steel

Design Pressure:

32.63 bar

Design Temperature:

232°C

Highlights:

Reactor with intricate internal parts

Country of Supply:

USA

Year of Supply:

2023

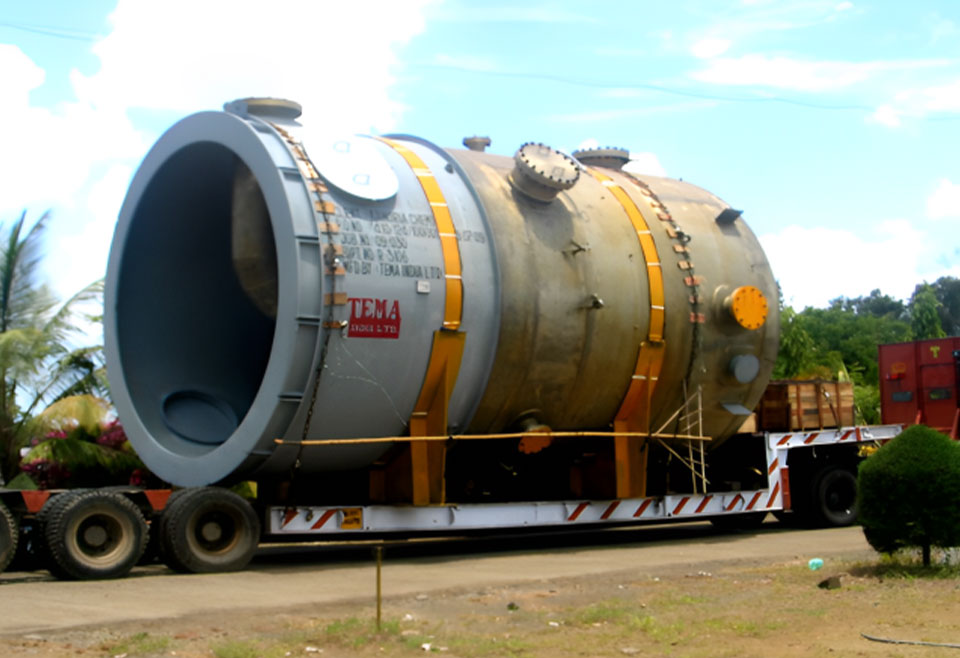

Main Reactor

Main Reactor

Metallurgy:

Stainless Steel

Design Pressure:

4.6/-1.055 kg/cm^2

Design Temperature:

350 degC

Highlights:

Reactor used for
fertilizer production

Country of Supply:

Saudi Arabia

Year of Supply:

2006

Metallurgy:

Stainless Steel

Design Pressure:

4.6/-1.055 kg/cm^2

Design Temperature:

350 degC

Highlights:

Reactor used for fertilizer production

Country of Supply:

Saudi Arabia

Year of Supply:

2006

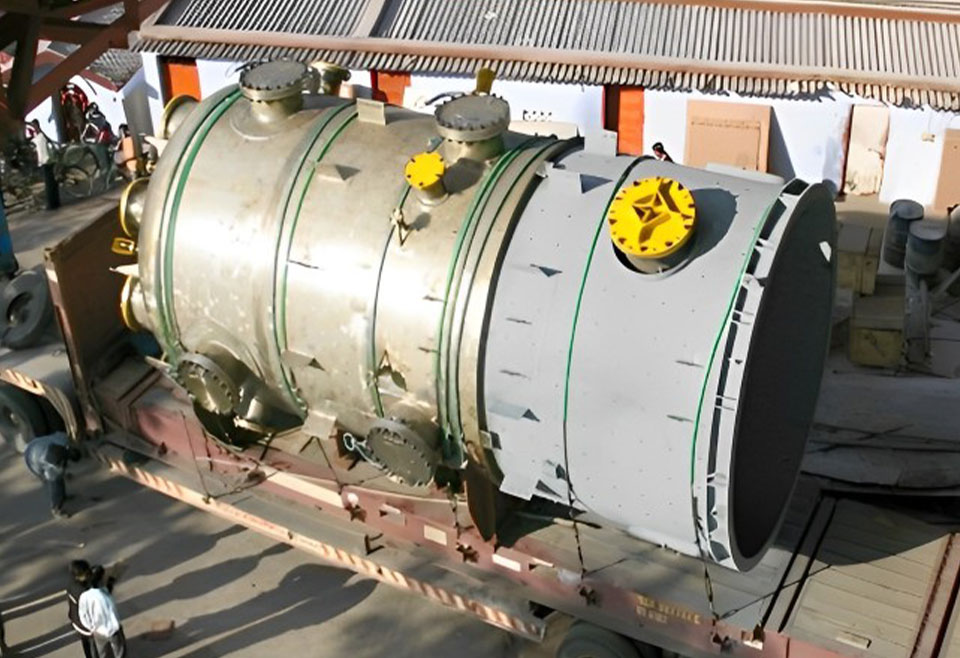

Main Reactor

Main Reactor

Metallurgy:

Stainless Steel

Design Pressure:

4.5/FV kg/cm^2

Design Temperature:

350 degC

Highlights:

This reactor was
supplied to a chemical plant.

Country of Supply:

India

Year of Supply:

2010

Metallurgy:

Stainless Steel

Design Pressure:

4.5/FV kg/cm^2

Design Temperature:

350 degC

Highlights:

This reactor was supplied to a chemical plant.

Country of Supply:

India

Year of Supply:

2010

Columns & Towers

Distillation columns or towers are used in the process industry for separating fluid mixtures based on their boiling points. They work by heating the mixture to vaporize components with lower boiling points, then condensing and collecting them as separate products.

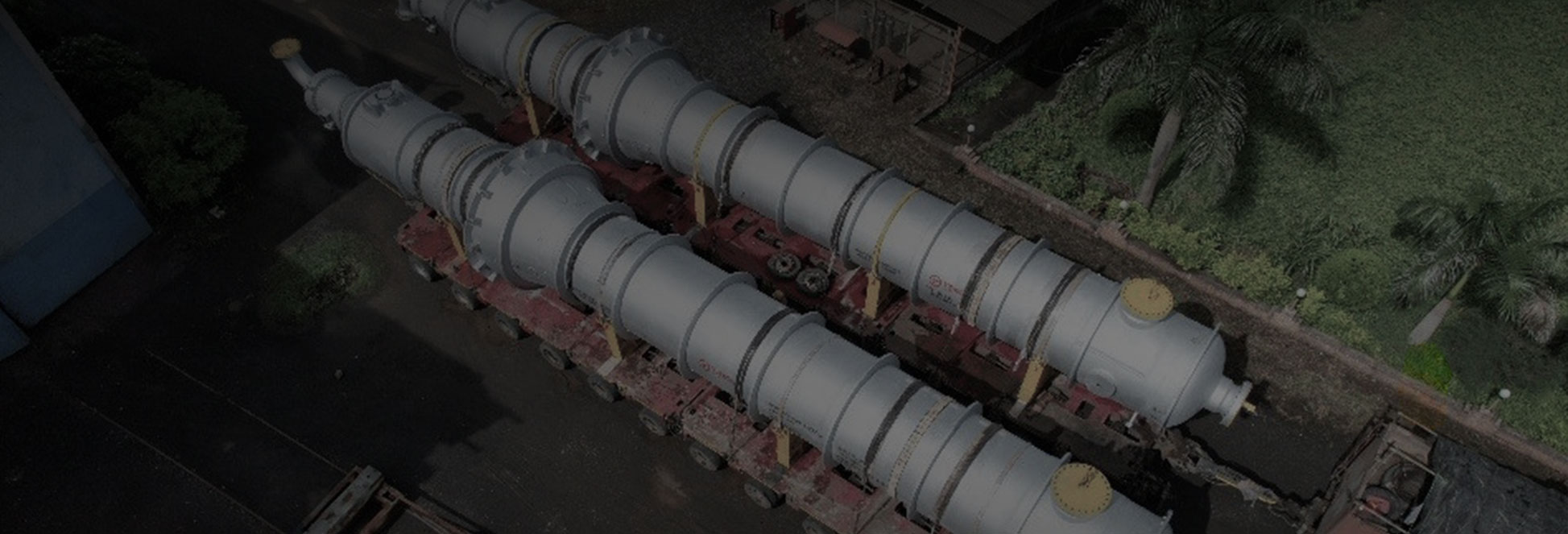

column towers

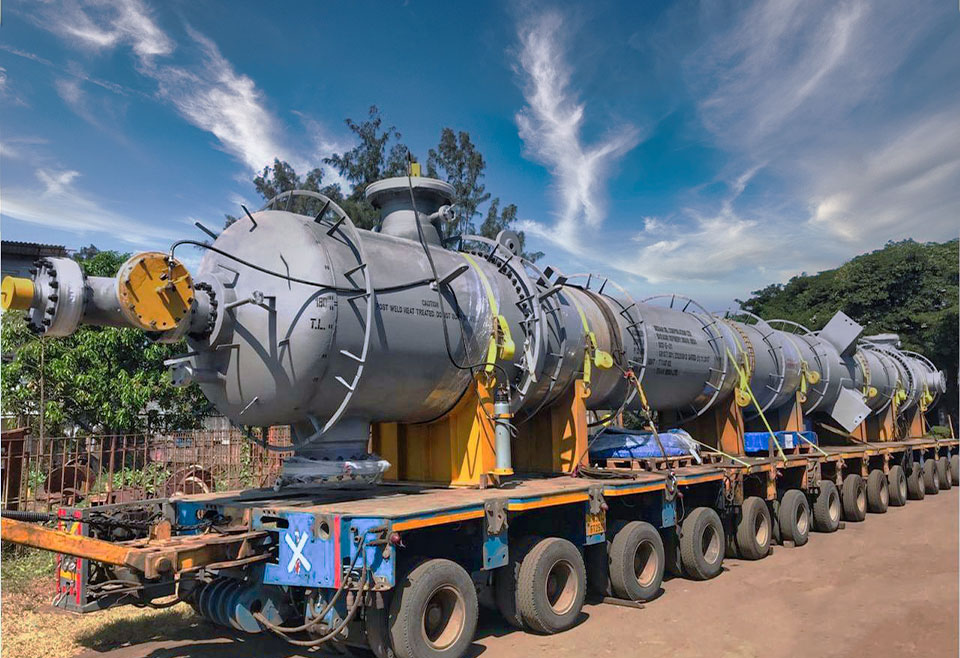

Texas Tower

Texas Tower

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

102.6 Kg/cm^2g

Design Temperature:

342 DegC

Highlights:

High-pressure Reactor feed/effluent feed exchanger with weld overlay channel.

Country of Supply:

India

Year of Supply:

2018

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

102.6 Kg/cm^2g

Design Temperature:

342 DegC

Highlights:

High-pressure Reactor feed/effluent feed exchanger with weld overlay channel.

Country of Supply:

India

Year of Supply:

2018

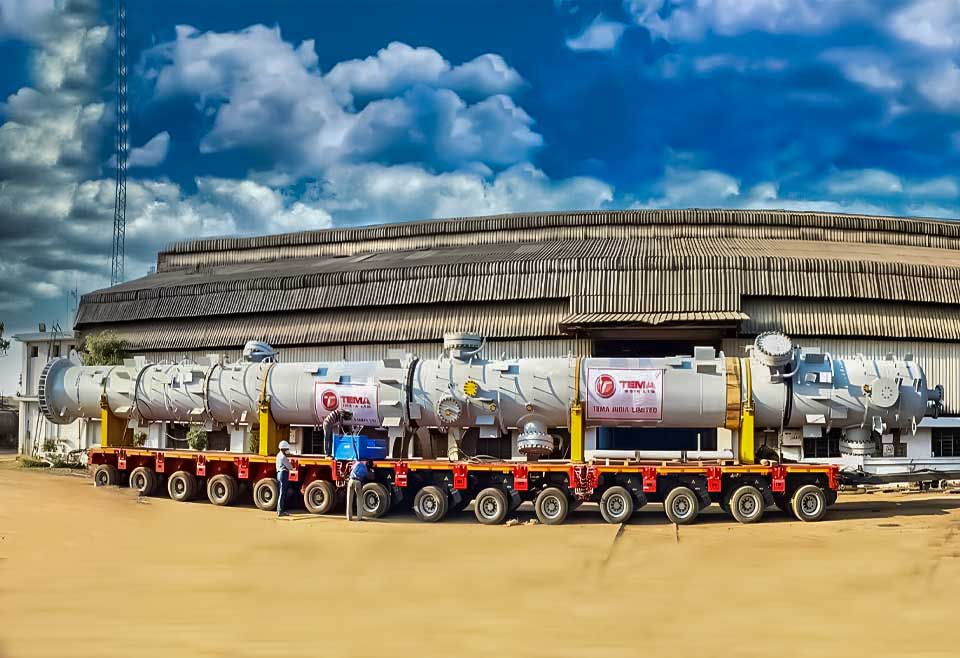

Off Gas Drier Scrubber Column

Off Gas Drier Scrubber Column

Metallurgy:

Stainless Steel

Design Pressure:

1.8/ Full Vacuum Kg/cm^2g

Design Temperature:

130 DegC

Highlights:

53m long Column

Country of Supply:

India

Year of Supply:

2022

Metallurgy:

Stainless Steel

Design Pressure:

1.8/ Full Vacuum Kg/cm^2g

Design Temperature:

130 DegC

Highlights:

53m long Column

Country of Supply:

India

Year of Supply:

2022

Texas Tower

Texas Tower

Metallurgy:

Alloy Steel

Design Pressure:

13.76 Kg/cm^2g

Design Temperature:

543 DegC (Shell side) and 521 DegC (Tube side)

Highlights:

23m long tower

Country of Supply:

UK

Year of Supply:

2023

Metallurgy:

Alloy Steel

Design Pressure:

13.76 Kg/cm^2g

Design Temperature:

543 DegC (Shell side) and 521 DegC (Tube side)

Highlights:

23m long tower

Country of Supply:

UK

Year of Supply:

2023

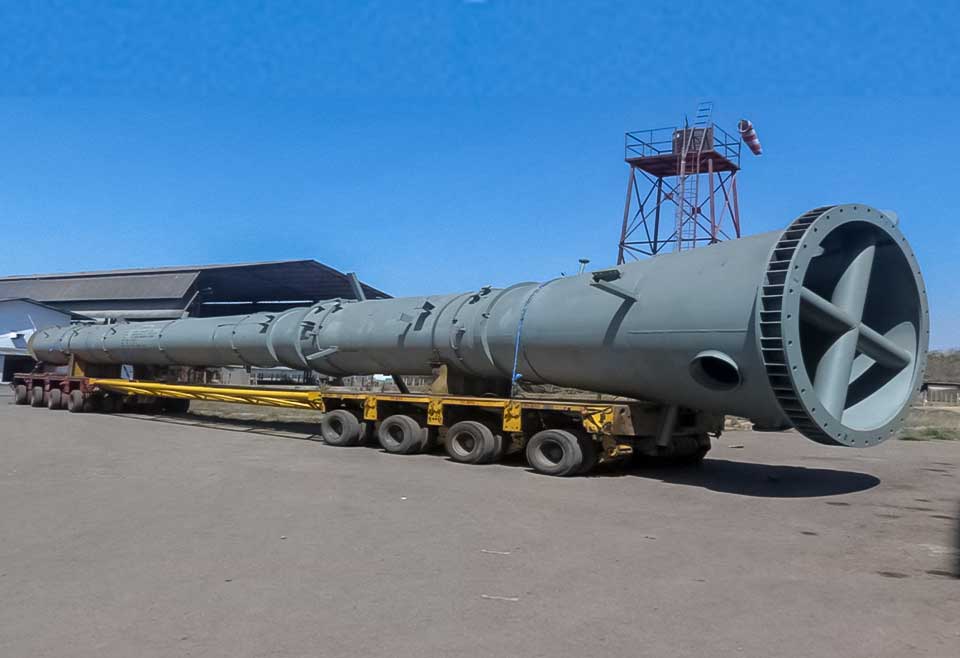

TCS Heavy Impurity Column

Metallurgy:

Carbon Steel

Design Pressure:

8/ Full Vacuum Kg/cm^2g

Design Temperature:

160 DegC

Highlights:

52m long column

Country of Supply:

India

Year of Supply:

2012

Metallurgy:

Carbon Steel

Design Pressure:

8/ Full Vacuum Kg/cm^2g


Design Temperature:

160 DegC

Highlights:

52m long column

Country of Supply:

India

Year of Supply:

2012
