Surface Condensers, HP/LP Feedwater Heaters and Piping Spools

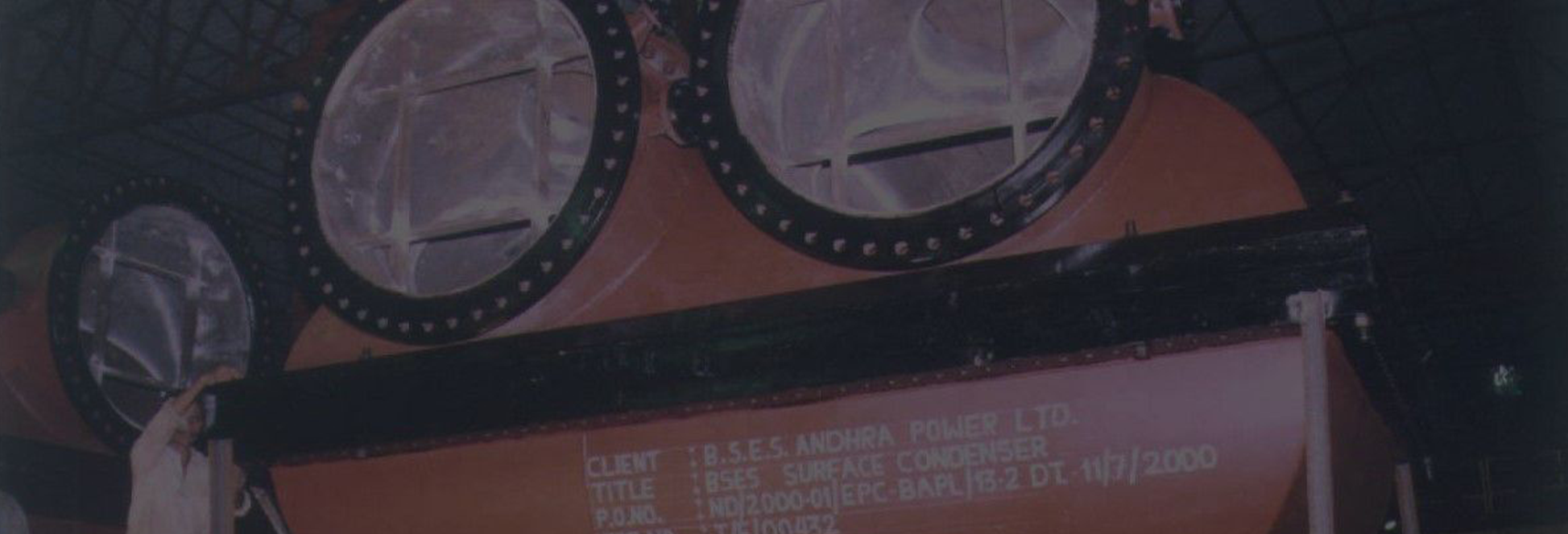

Surface Condensers

This is a type of heat transfer device that converts steam from industrial processes back into liquid form. They use cooling water to condense the steam, allowing for efficient water reuse and minimizing energy loss.

condenser tema

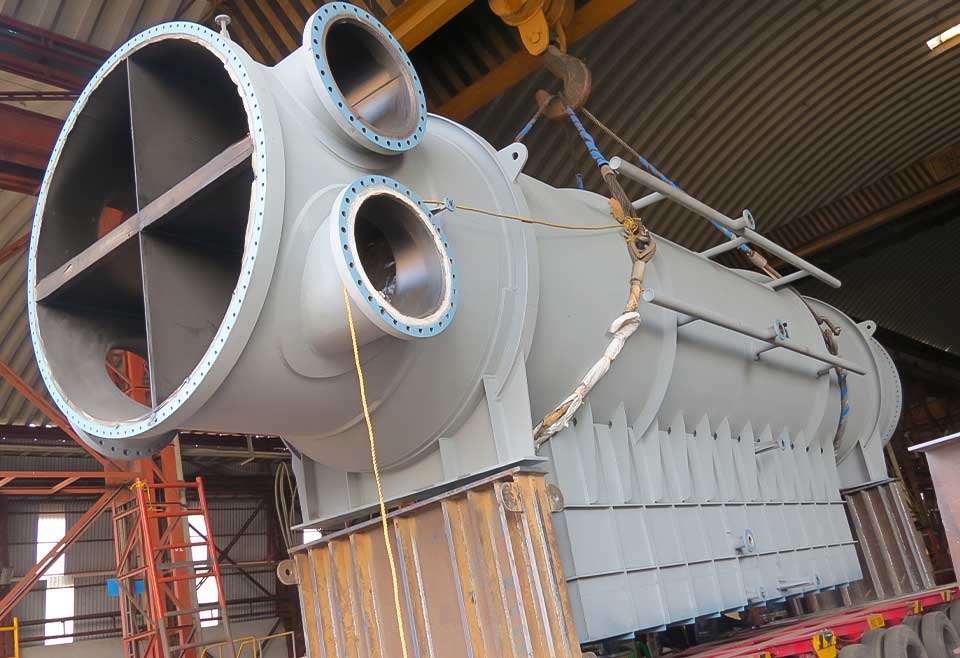

Circular Surface Condenser

Circular Surface Condenser

Metallurgy:

Carbon Steel

Design Pressure:

0.71 Kg/m^2g (Shell side) and 13.2 Kg/m^2g (Tube side)

Design Temperature:

120 DegC (Shell side) and 60 DegC (Tube side)

Highlights:

Circular structured high-pressure surface condenser.

Country of Supply:

Malaysia

Year of Supply:

2020

Metallurgy:

Carbon Steel

Design Pressure:

0.71 Kg/m^2g (Shell side) and 13.2 Kg/m^2g (Tube side)

Design Temperature:

120 DegC (Shell side) and 60 DegC (Tube side)

Highlights:

Circular structured high-pressure surface condenser

Country of Supply:

Malaysia

Year of Supply:

2020

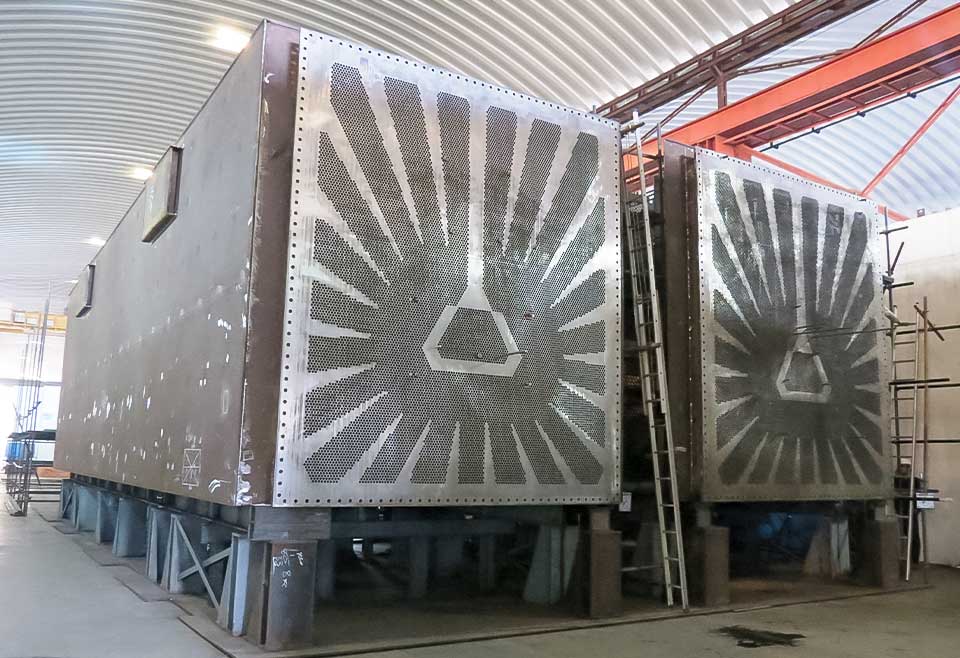

Rectangular Surface Condenser

Rectangular Surface Condenser

Metallurgy:

Stainless Steel

Design Pressure:

1.08 Kg/m^2g (Shell side) and 5 Kg/m^2g (Tube side)

Design Temperature:

120 DegC (Shell side) and 60 DegC (Tube side)

Highlights:

Rectangular surface condenser tube bundle. Upper neck, lower neck and water box assemblies are supplied separately.

Country of Supply:

India

Year of Supply:

2019

Metallurgy:

Stainless Steel

Design Pressure:

1.08 Kg/m^2g (Shell side) and 5 Kg/m^2g (Tube side)

Design Temperature:

120 DegC (Shell side) and 60 DegC (Tube side)

Highlights:

Rectangular surface condenser tube bundle. Upper neck, lower neck and water box assemblies are supplied separately.

Country of Supply:

India

Year of Supply:

2019

Circular Surface Condenser

Circular Surface Condenser

Metallurgy:

Stainless Steel

Design Pressure:

1.05 Kg/m^2g (Shell side) and 6.63 Kg/m^2g (Tube side)

Design Temperature:

150 DegC (Shell side) and 80 DegC (Tube side)

Highlights:

Customized condenser designed for UK’s Waste to Energy Plant.

Country of Supply:

UK

Year of Supply:

2013

Metallurgy:

Stainless Steel

Design Pressure:

1.05 Kg/m^2g (Shell side) and 6.63 Kg/m^2g (Tube side)

Design Temperature:

150 DegC (Shell side) and 80 DegC (Tube side)

Highlights:

Customized condenser designed for UK’s Waste to Energy Plant.

Country of Supply:

UK

Year of Supply:

2013

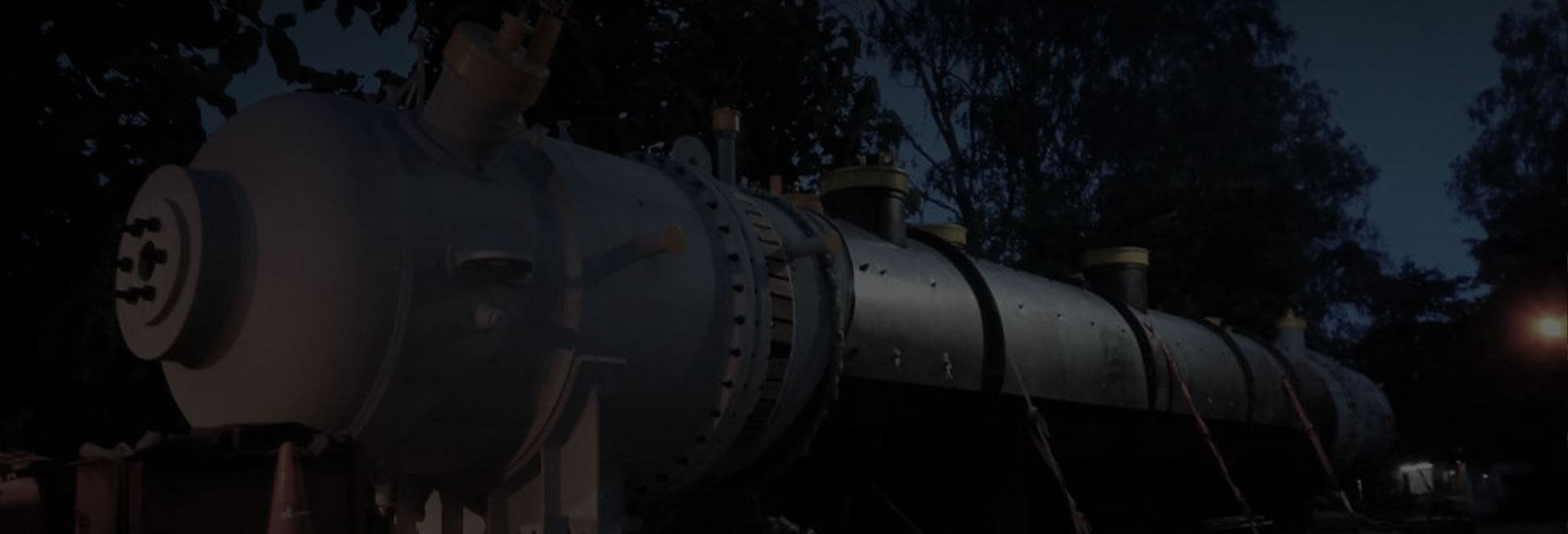

HP/LP Feedwater Heaters

A Feedwater Heater in power plants preheats water for boilers by capturing heat from turbine extraction steam. This process enhances thermodynamic efficiency, cutting operating costs, and preventing thermal shock to the boiler.

Condensers Feedwaters Spools

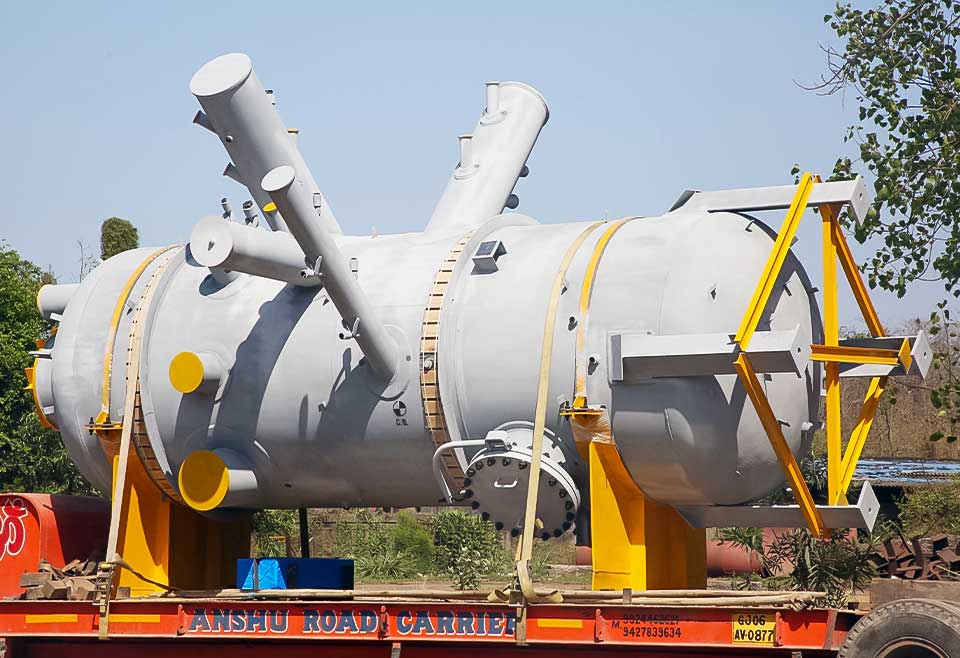

High-Pressure Feedwater Heaters

High-Pressure Feedwater Heaters

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

32+Full Vacuum Kg/m^2g (Shell side) and 380+ Full Vaccum Kg/m^2g (Tube side)

Design Temperature:

420 DegC (Shell side) and 350 DegC (Tube side)

Highlights:

One of the maximum drilled tubesheet (700mm) to be used in High pressure process.

Country of Supply:

India

Year of Supply:

2019

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

32+Full Vacuum Kg/m^2g (Shell side) and 380+ Full Vaccum Kg/m^2g (Tube side)

Design Temperature:

420 DegC (Shell side) and 350 DegC (Tube side)

Highlights:

One of the maximum drilled tubesheet (700mm) to be used in High pressure process.

Country of Supply:

India

Year of Supply:

2019

High-Pressure Feedwater Heaters

High-Pressure Feedwater Heaters

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

104/Full Vacuum Kg/m^2g (Shell side) and 380 / Full Vacuum Kg/m^2g (Tube side)

Design Temperature:

455 Skirt /315 Shell DegC (Shell side) and 315/335 DS Tubes DegC (Tube side)

Highlights:

Stainless Steel Weld Overlay on Carbon steel on the channel.

Country of Supply:

India

Year of Supply:

2021

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

104/Full Vacuum Kg/m^2g (Shell side) and 380 / Full Vacuum Kg/m^2g (Tube side)

Design Temperature:

455 Skirt /315 Shell DegC (Shell side) and 315/335 DS Tubes DegC (Tube side)

Highlights:

Stainless Steel Weld Overlay on Carbon steel on the channel.

Country of Supply:

India

Year of Supply:

2019

Low-Pressure Feedwater Heaters

Low-Pressure Feedwater Heaters

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

8.5/Full Vacuum Kg/m^2g (Shell side) and 48.5 / Full Vacuum Kg/m^2g (Tube side)

Design Temperature:

331 DegC (Shell side) and 180 DegC (Tube side)

Highlights:

Shell removable with integral drain cooler

Country of Supply:

India

Year of Supply:

2021

Metallurgy:

Carbon Steel and Stainless Steel

Design Pressure:

8.5/Full Vacuum Kg/m^2g (Shell side) and 48.5 / Full Vacuum Kg/m^2g (Tube side)

Design Temperature:

331 DegC (Shell side) and 180 DegC (Tube side)

Highlights:

Shell removable with integral drain cooler

Country of Supply:

India

Year of Supply:

2021

High-Pressure Feedwater Heaters (Unit-2)

High-Pressure Feedwater Heaters (Unit-2)

Metallurgy:

Low Alloy Steel and Stainless Steel

Design Pressure:

34.896/Full Vacuum Kg/m^2g (Shell side) and 358.986/ Full Vacuum Kg/m^2g (Tube side)

Design Temperature:

495 DegC (Shell side) and 325 DegC (Tube side)

Highlights:

Tube engineered to withstand high pressure for high-pressure procedures in the power sector.

Country of Supply:

India

Year of Supply:

2014

Metallurgy:

Low Alloy Steel and Stainless Steel

Design Pressure:

34.896/Full Vacuum Kg/m^2g (Shell side) and 358.986/ Full Vacuum Kg/m^2g (Tube side)

Design Temperature:

495 DegC (Shell side) and 325 DegC (Tube side)

Highlights:

Tube engineered to withstand high pressure for high-pressure procedures in the power sector.

Country of Supply:

India

Year of Supply:

2014

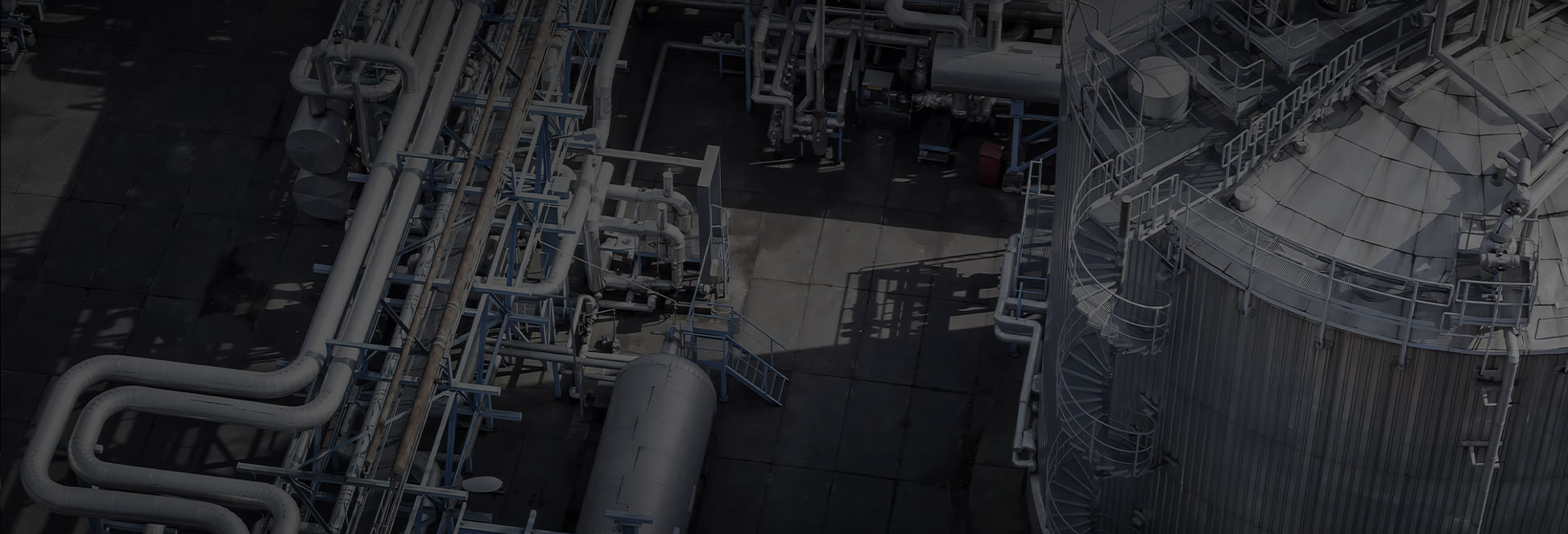

Piping Spools

Prefabricated pipe sections with fittings and flanges simplify construction and maintenance of intricate piping systems. They minimize on-site welding, streamline assembly, and guarantee precise connections. This enhances the safe and efficient flow of fluids in industrial processes.

Condensers Feedwaters Spools
Post Cooler

Post Cooler

Metallurgy:

Carbon Steel

Design Pressure:

14/Full Vacuum Kg/m^2g (Shell side) and 25 / Full Vacuum Kg/m^2g (Tube side)

Design Temperature:

-10 / 191 DegC (Shell side) and -10 / 200 DegC (Tube side)

Highlights:

Double Pipe Exchangers

Country of Supply:

India

Year of Supply:

2008

Metallurgy:

Carbon Steel

Design Pressure:

14/Full Vacuum Kg/m^2g (Shell side) and 25 / Full Vacuum Kg/m^2g (Tube side)

Design Temperature:

-10 / 191 DegC (Shell side) and -10 / 200 DegC (Tube side)

Highlights:

Double Pipe Exchangers

Country of Supply:

India

Year of Supply:

2008
